Peak performance in precision and maintenance cleaning for industries
FinnSonic MI is a compact and fast solution to conventional industrial parts cleaning needs. Operating the unit as well as cleaning and maintenance of the parts is simple and effortless. MI series’ modules are made of stainless steel for demanding conditions and heavy use.
Ultrasonic cleaning is sufficient for typical maintenance needs. The MI machine can be expanded into a modular multi-stage washing system, if needed. The washing process can be enhanced with a host of options, thus creating even more cost savings.
Up to 50 % shorter treatment times
- The new Finn Sonic ultrasonic technology provides constant maximum performance
- Automatic measuring of load – frequency and power regulation
- Fully digital generator – welladjusted and energy efficient
- Advanced diagnostics – performance monitoring and service capabilities
- Top level of cleanliness
- Quick wash process
- Good ergonomics in manual handling of items
- A cost-effective solution
- Compact design, small footprint
Features of FinnSonic MI-series
Reduced Operating Costs
7-Day Timer For Pre-Sets
Oil Separation
Closed Loop Circulation
Air Bubble Agitation
Easy Control System

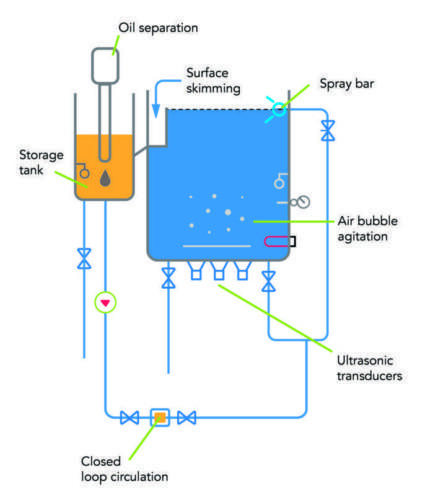

Wash process
The good level of cleanliness achieved with FinnSonic MI series machines is based on an efficient ultrasound. The transducers have been mounted either to the base or to the sides of the tank, as needed. The ultrasound can thus be optimally targeted for more efficient cleaning. A full width overflow weir with a cut-off valve for surface skimming is a standard feature.
Rinse
Detergent residues are removed from the surface of the part by rinsing. An increased rinsing effect is obtained by air bubble agitation.
Fluid handling
FinnSonic fluid-handling options ensure the desired level of cleanliness and reduce operating costs. Closed loop filtration and oil separation systems prolong the life of wash and rinse liquids while providing a more consistent cleaning result. Free oil can be skimmed from the surface to a storage tank for oil separation.
FinnSonic control system
- The wash process is controlled by a user friendly V03 control system
- Preheating can be set with the seven-day timer
- Most frequently used temperature and wash time settings can be stored in three memory slots
- Setting the temperature and switching the heating on is done from the control panel, along with setting the wash time and starting the wash
- A temperature interlock is also a feature. It ensures that the the wash process will not begin before the set temperature is reached
Technical information
| MI-range model information | M80I | M120I | M160I | M160I 2400 |
|---|---|---|---|---|
| Tank dimensions (mm) | 540 x 290 x 310 (h) | 540 x 400 x 360 (h) | 1110 x 280 x 310 (h) | 1110 x 280 x 310 (h) |
| Max load (kg) | 25 | 35 | 40 | 40 |
| Filling volume (liters) | 80 | 120 | 160 | 160 |
| Ultrasonic frequency (kHz) | 30 | 30 | 30 | 30 |
Downloads:
FinnSonic_MI-series_brochure2024.pdf
