General industrial maintenance cleaning and mould & tool cleaning
Designed for the general industrial maintenance cleaning of complex parts, replacing laborious and abrasive mechanical manual cleaning. FinnSonic Corus units clean even the most demanding parts efficiently, saving working hours, yet still achieving a high level of cleanliness. FinnSonic Corus will reduce manual input, makes operating safe, and moulds & tools serve longer.
40–50% cost savings in mould maintenance
Choose from 3 main modules:
- Corus standard modules for general maintenance cleaning
- Corus HD standard modules for mould and tool cleaning
- Corus X customer tailored modules for maintenance cleaning
Features of the Corus-series
Save Time And Labour
Gentle Yet Powerful Cleaning
Precise
Safe For Operator
Modular Design
Low Energy And Water Consumption

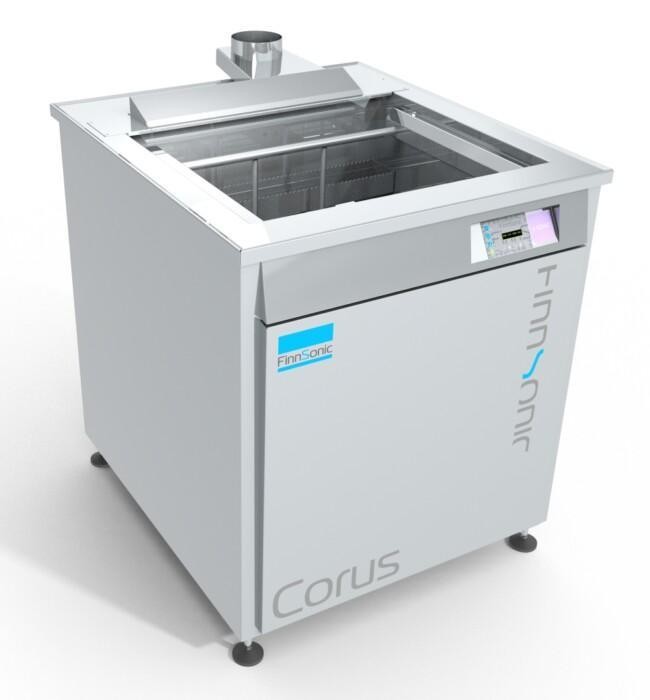

Finnsonic Corus
Standard modules for general maintenance cleaning.
Examples of maintenance cleaning applications:
- Filters, sieves, heat exchangers
- Vehicle repair: carburetors, chains, nozzles, cylinder heads, filters
- Mechanical industry: bearings, blades, nozzles, valves, sensors
- Process industry: valves, nozzles, sealings, measuring devices, pump parts, pneumatic and hydraulic parts
- Dye, ink, paint, urethane, epoxy removal

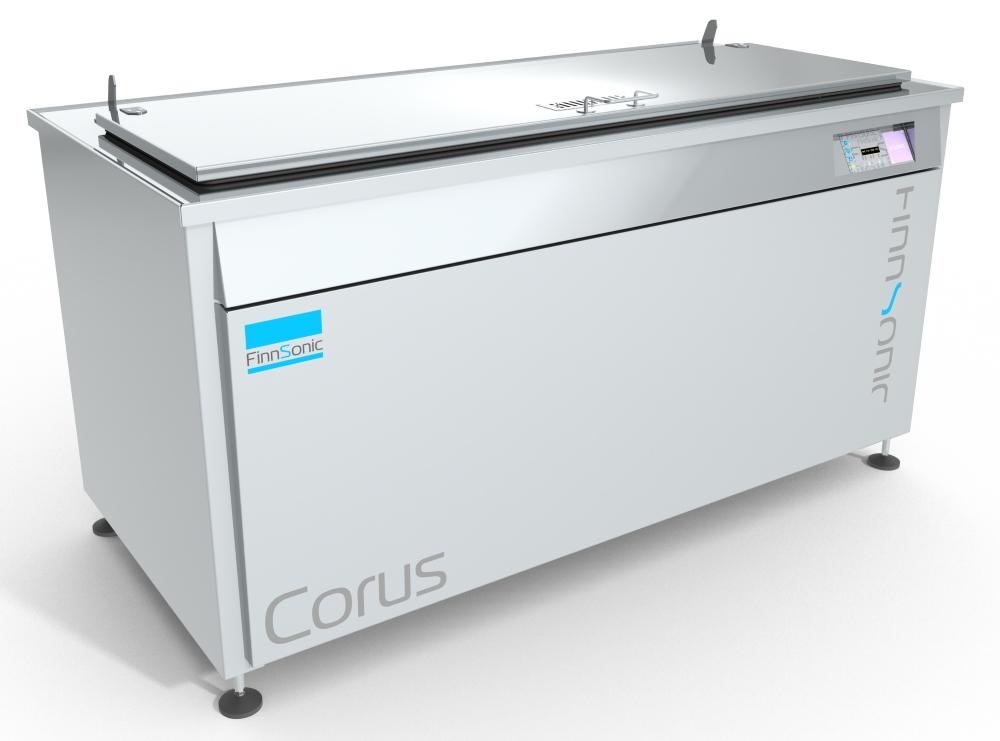

Finnsonic Corus HD
Standard modules for mould and tool cleaning.
Examples of maintenance cleaning applications:
- Plastic injection moulds
- Glass moulds
- Die casting moulds
- Extrusion tools
- Press tools
- Punch tools
- Saw blades, wood cutters
Finnsonic Corus X
When special dimensions are needed, FinnSonic Corus X is the answer. The modules can be tailor made according to the customer’s current needs. The modules are designed with smart design automation that is based on a parametric model. In turn, this produces cost-efficiency and fast delivery times.
Complementary options

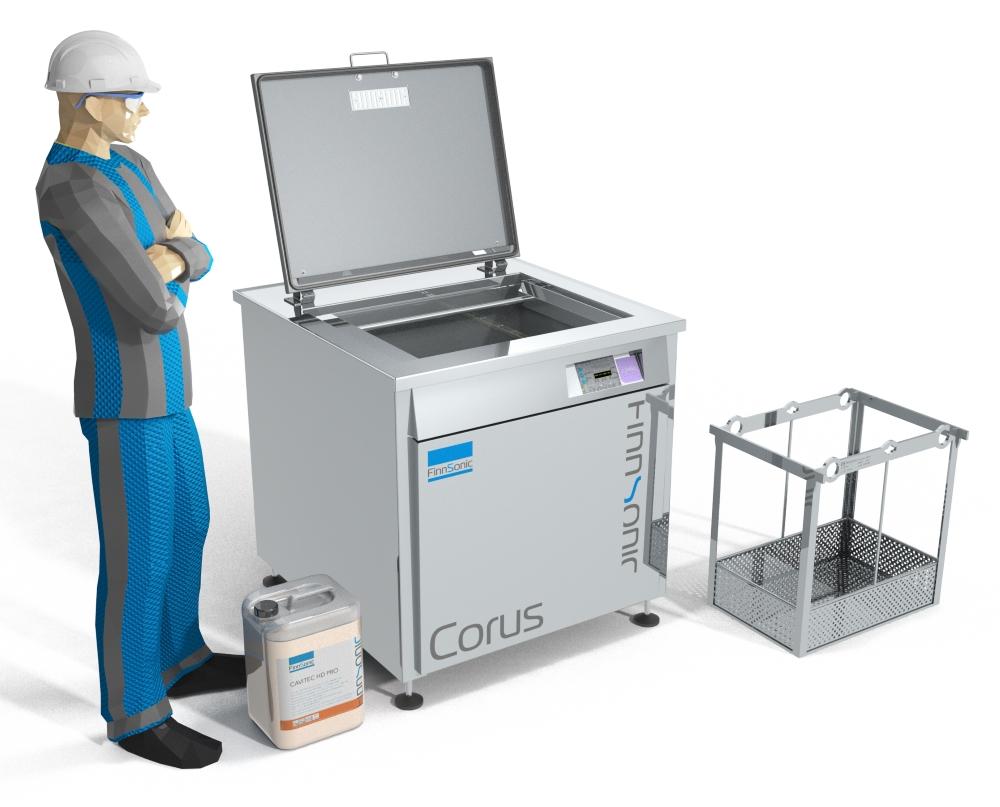

- Wash basket – safe parts handling
- Hinged tank lid – contains vapour, sound and heat
- Pneumatic lid actuation – enhances operator safety
- Bath maintenance options – extend bath life and cleaning quality
- Ventilation rim – reduces exposure to vapours
- Noise suppression kit – reduces sound level by up to 10 dB

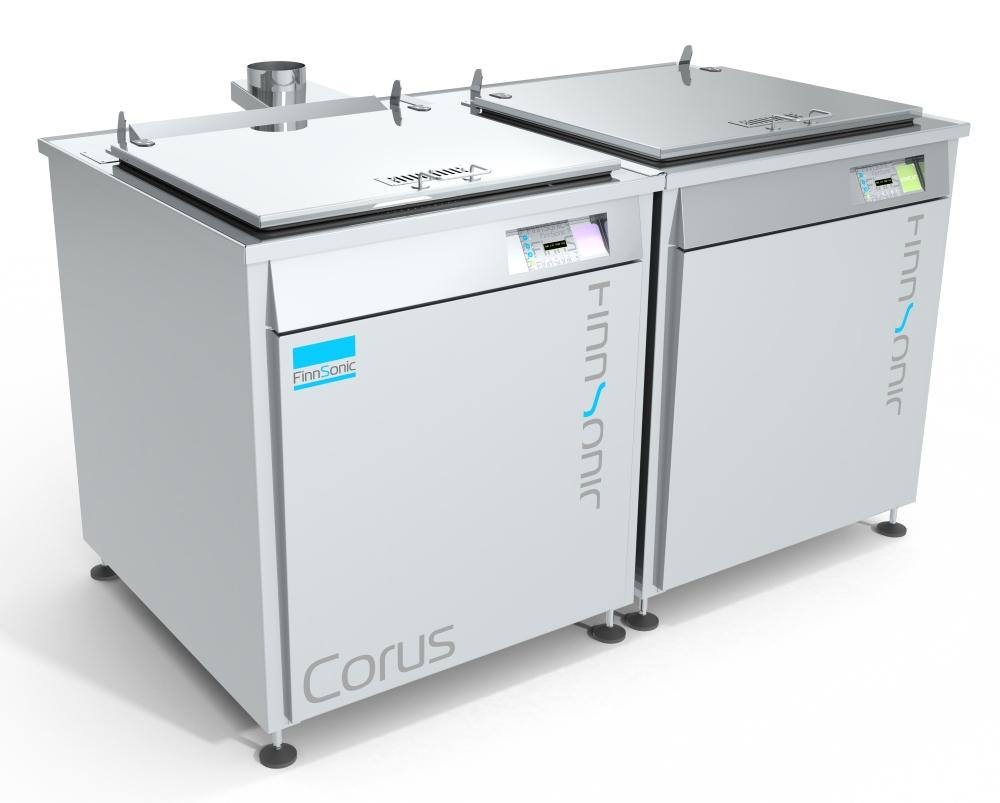

- Rinse module – enables rinsing off detergent and contamination residues for a clean and safe result
- Air bubble agitation for rinse tank – increases rinsing efficiency

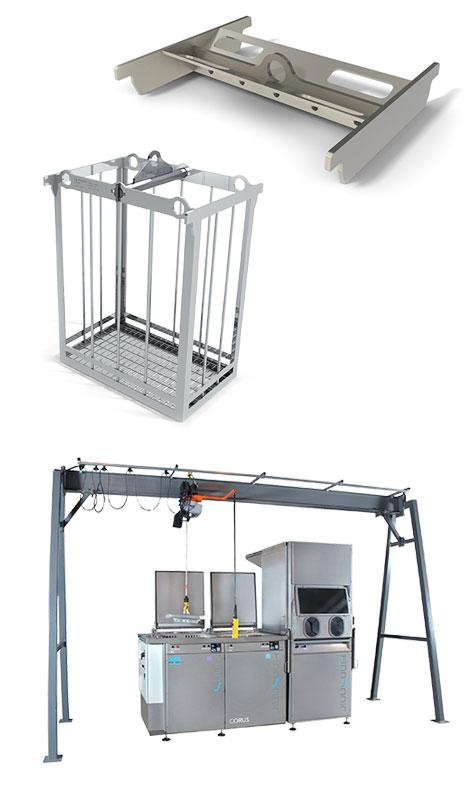

Options for mould handling
Lifting beam for mould plates
- The mould is hung on the beam with shackles.
- A matching interface for the support bars in the tank.
- One point lifting for convenient handling with a chain hoist
Basket for mould plates / parts
- One point lifting for convenient handling with a chain hoist, thanks to detachable lifting accessory.
- Dedicated baskets with mesh are also available for cleaning small items.
FinnSonic Chain Hoist
- Compatible with the cleaning line
- Ergonomic load handling
- A ready-to-use floor fitted chain hoist makes the purchasing and installation a straight forward process.
- The complete system is CE marked.
FinnSonic Ergo Station
FinnSonic Ergo Station is an innovation for the manual rinsing, flushing, drying and inspection of moulds. Its main advantages include a high level of safety and ergonomics thanks to a fully enclosed, brightly lit and ventilated working chamber. Operating the machine is safe and easy as parts are loaded through a sliding side door and supported with a hoist during the treatment.
Technical information
| Corus-range model information | Corus | Corus HD | Corus X |
|---|---|---|---|
| Tank dimensions (mm) | min. 300 x 538 x 442(h) max. 1208 x 800 x 658 (h) |
min. 400 x 250 x 400 (h) max. 1200 x 700 x 900(h) |
bespoke solutions |
| Max load (kg) | 100 – 350 | 100 – 2000 | |
| Filling volume (liters) | 135 -1200 | 135 – 2200 | |
| Ultrasonic effect (kW) | 1,2 – 4,8 | 1,2 – 12 |
