Optimized for industrial maintenance cleaning of complex parts

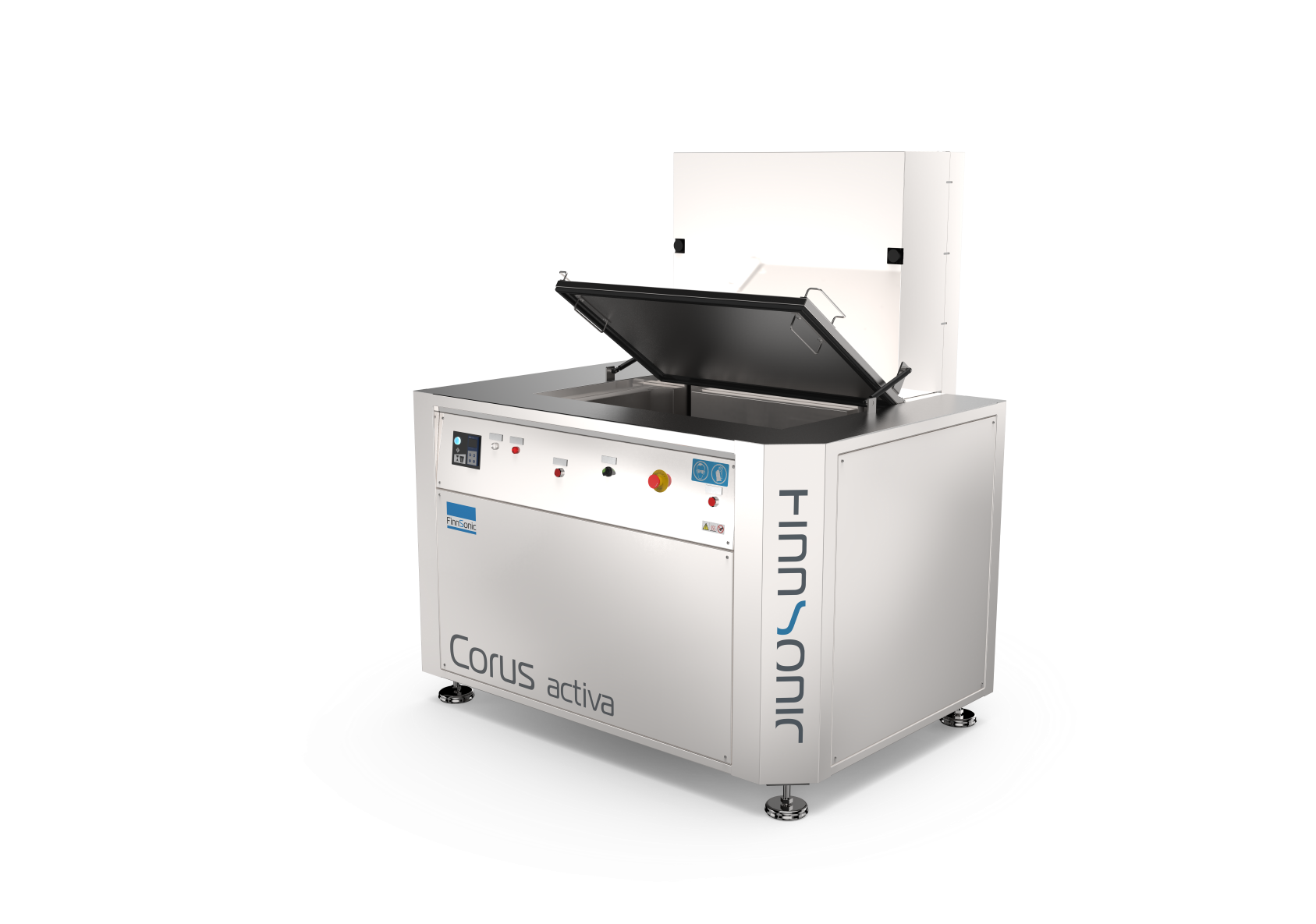

A robust integrated load platform makes loading and unloading of parts easy and safe. The platform also provides dunking movement during treatment cycle, which results in faster and more uniform cleaning. It cleans gently the hardest impurities from complex parts with only the minimal manual intervention. The cleaning process is safe in an enclosed space. It is also environmentally friendly with no need for harsh chemicals and with low energy and water consumption.
Streamlined and cost-efficient maintenance process of complex parts
- Short cleaning process
- Superior cleaning results with ultrasonic cleaning
- Reduced manual labour
- Water-based and an energy-efficient process
Safe and easy operation
- The load platform makes the handling easy
- An insulated lid keeps the heat in the tank
- Pneumatic actuation (optional) of the lid makes the operation safe and comfortable
Main applications
- Filters, sieves, heat exchangers
- Vehicle repair: turbochargers, cylinder heads, gearbox parts
- Mechanical industry: bearings, blades, nozzles, valves, sensors
- Process industry: valves, nozzles, seals, measuring devices, pump parts, pneumatic and hydraulic parts
Easy and efficient operation
Parts are loaded with the platform in the upper position. Platform is lowered with two-hand safety controls. Lid is closed manually. Treatment is started by pressing the start button. After treatment the lid is opened manually, and the platform is raised with two-hand safety control for the unloading of parts.
- Truly robust and safe load handling with double guides and cylinders on the load platform lifting system.
- Safety and comfort of the operation is improved with the pneumatic actuation of the lid (on Corus Activa 480 only).
- Insulated lid with gas springs keeps the heat in the tank with added safety for the operator.
- Dunking movement of the platform contributes to fast and uniform washing.
- Heating multiplies the detergent cleaning power.
- Ultrasonic transducers on two sides (front and back) for full coverage of the load area without dampening due to sludge accumulation over transducers.
Options
- Pneumatic actuation of the lid (Corus Activa 240 and 360) – adds to the safety and comfort of the operation
- Rim lip ventilation with extraction fan – reduces exposure to vapors and heat
- Closed loop circulation with P1S or P2S bag filter – increases bath life and improves cleanliness result
- Extended storage weir with circulation pump – enables skimming of oil from tank surface avoiding recontamination of parts when lifting out
Technical information
| FinnSonic Corus Activa models | Corus Activa 240 | Corus Activa 360 | Corus Activa 480 |
|---|---|---|---|
| Load platform dimensions (mm) | 800 x 500 x 400 (h) | 1100 x 600 x 400 (h) | 1250 x 700 x 650 (h) |
| Load capacity (kg) | 250 | 250 | 500 |
| Filling volume (liters) | 409 | 498 | 898 |
| Ultrasonic effect (nominal, kW) | 2,4 | 3,6 | 4,8 |
