Cleaning without disassembly
FinnSonic Cleaning Lines for Heat Exchangers provide repeatable cleaning process that is intensified by using ultrasonics that shortens the treatment time. The robust technology ensures lines with long operating life and low total cost of ownership (TCO).
Benefits of the FinnSonic solution
- HEX cleaning without disassembly
- Reduces manual work
- Shortens return to service time (RTS)
- Equipment built to last
- Low Total Cost of Ownership
Repeatable cleaning process

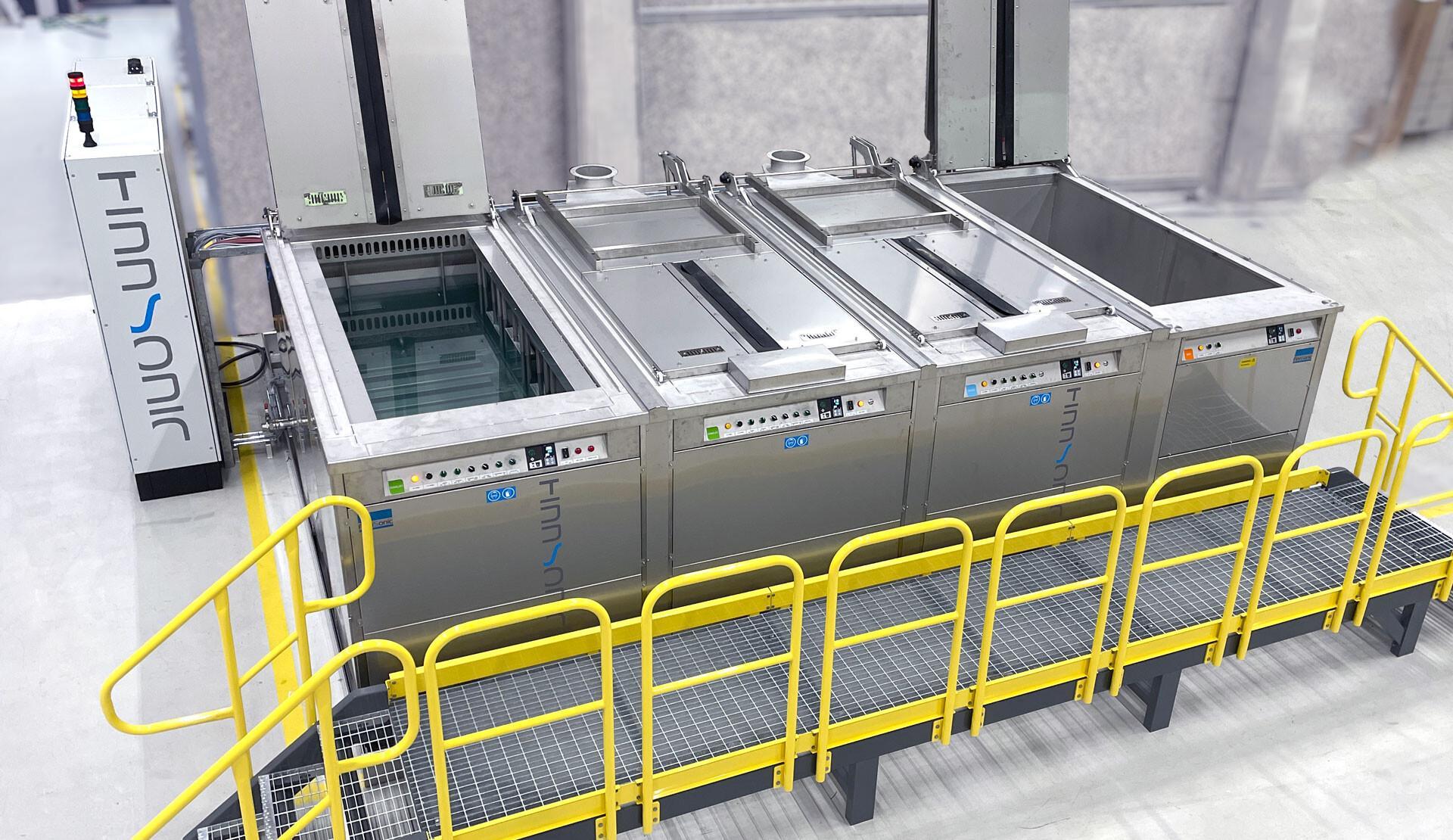

Heat exchangers are manually loaded in wash tank with monorail hoist.
While the system incorporates intelligent process control and part tracking system, handling of heat exchangers is done with monorail hoist.
Treatment stages are programmable, and they can be automatically repeated during one cleaning cycle.
The cleaning process
1. Stage/tank: Soaking/external flushing
Description: Dipping in tank, soaking in chemical, mechanical outside cleaning with jet turbulation
2. Stage/tank: Ultrasonic cleaning
Description: Loosening/removal of particulate contamination outside and inside
3. Stage/tank: Flushing
Description: Flushing of internal routes, removal of particles loosened by ultrasonics
4. Stage/tank: Drying
Description:Hot air convection dryer
